Real-Time
Power & Cadence Data
The Inpeak Powercrank uses ANT+ and Bluetooth Low Energy (BLE) protocols to deliver real-time data, including power, cadence, and other detailed metrics to your cycling computer or training app.

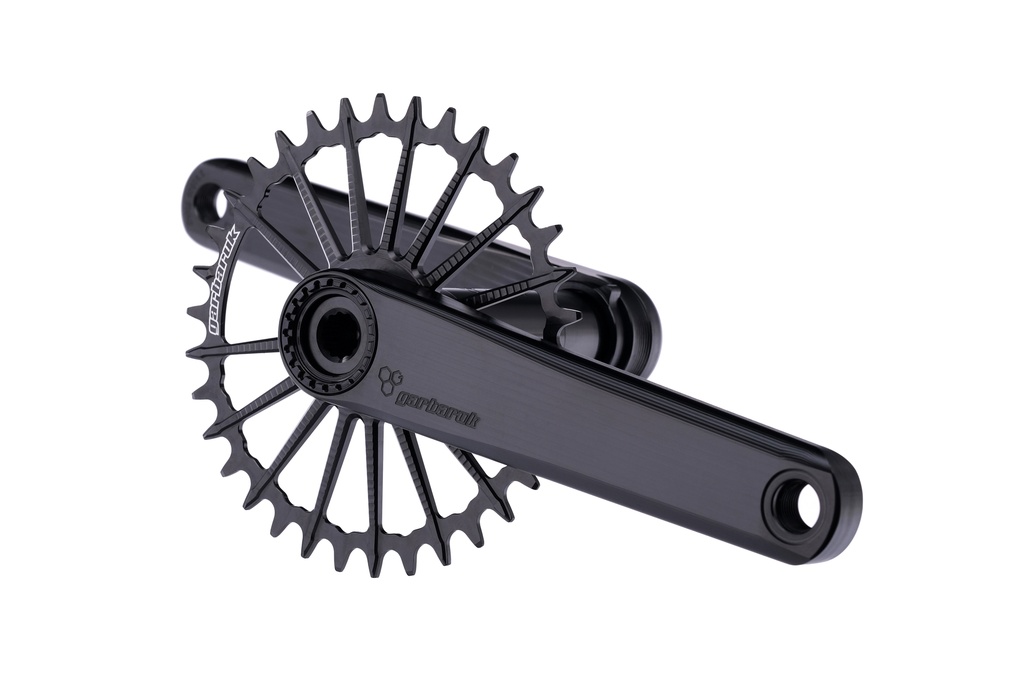

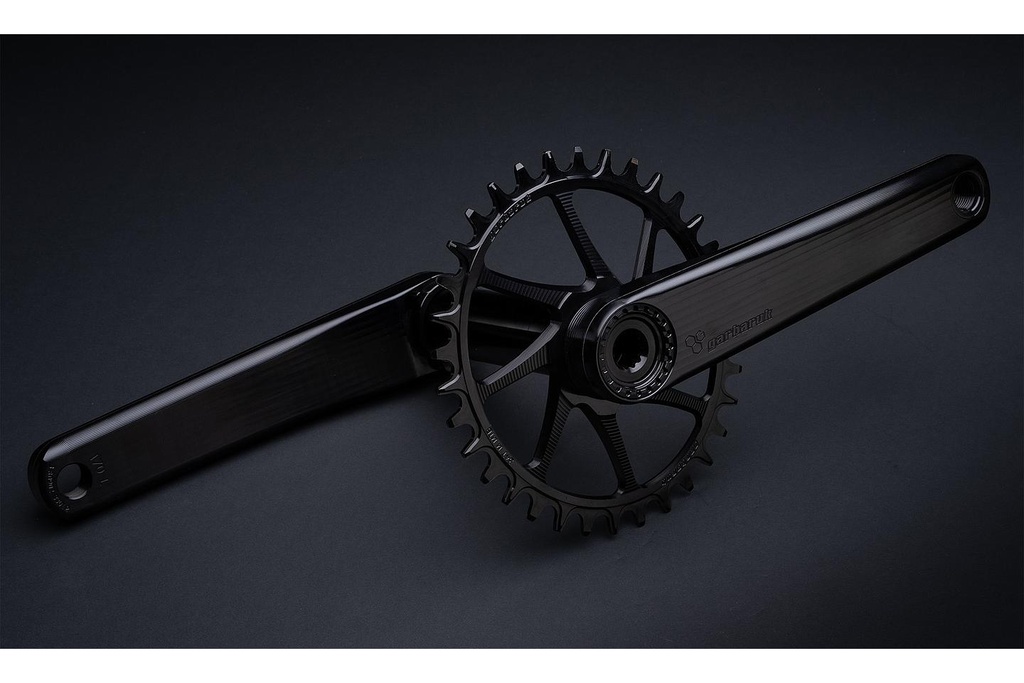

Light as carbon. Reliable as aluminium. Stiff where it matters.
Garbaruk XC crankset has been designed to offer the perfect combination of stiffness, reliability, low weight and customizability.
LIGHTWEIGHT, CUSTOMIZABLE CHAINRING
We have used years of experience designing chainrings to create a perfect fit for our own crankset and maximize weight savings.
Beautiful, minimalistic design available in all shapes and sizes.
Garbaruk Cranksets now available with
Inpeak PowerCrank!
We are now cooperating with our friends at Inpeak to provide an elegant power meter option that doesn't impact the look of our cranksets.
How it works?
1
Place your order
Select your crankset configuration and choose the power meter option (Single or TWiN2).
2
We manufacture your crankset
Your Garbaruk crankset is machined and assembled according to your specifications.
3
Power meter installation
We send the crank arms to Inpeak for factory installation of the power meter. Once installed, they send it back to us.
4
Final delivery
Your complete crankset with power meter is shipped directly to you.
Engineered
for Peak Performance
This is the most popular version of the Inpeak power meter, the PowerCrank is a reliable training tool that helps riders push their limits and reach a higher level of performance.
Inpeak Powercrank
Built
for All Conditions
Its waterproof and impact-resistant housing is engineered for use across all disciplines: MTB, gravel, and road. Power is supplied by a standard CR2032 battery with long runtime.
Accurate
in Every Weather
Accurate and consistent readings are maintained in all weather conditions, thanks to the ATC (Automatic Temperature Compensation) system, operating effectively between –5°C and +50°C.
Two power meter configurations are available:

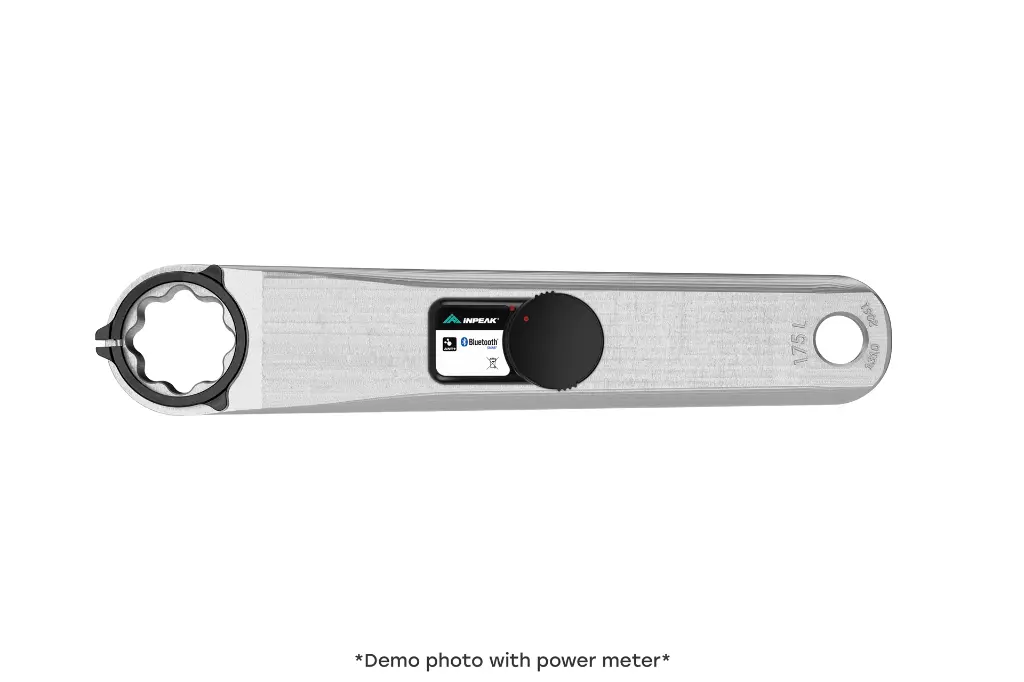

SINGLE

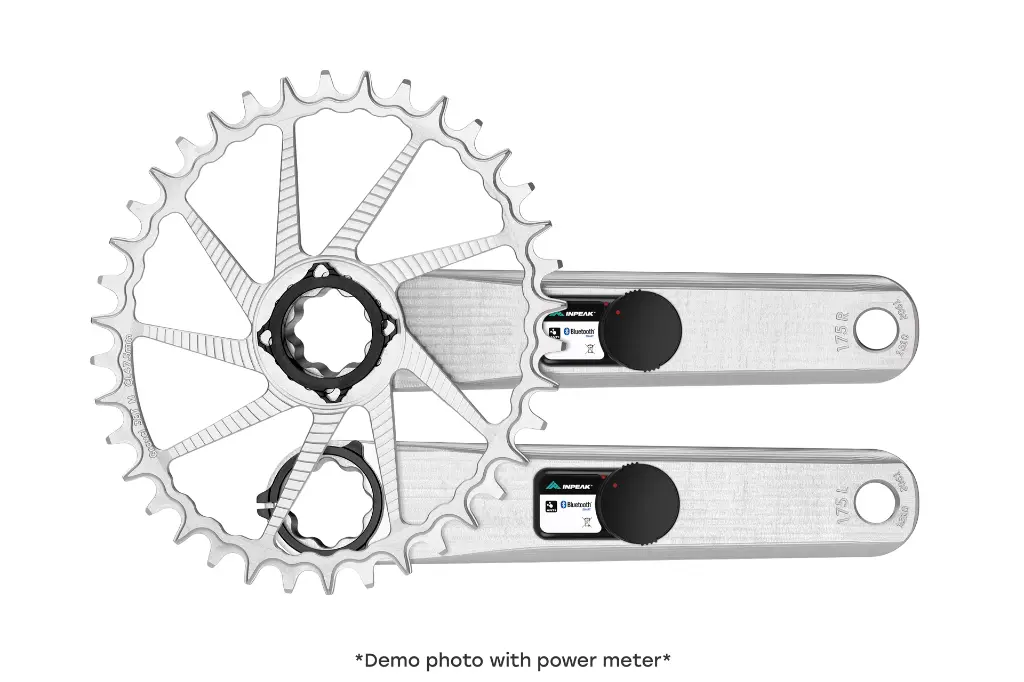

DOUBLE (TWin2)
Includes sensors on both crank arms, providing independent left/right power and full balance data.
Do I have enough free space on my bike?
Will GARBARUK POWERCRANK fit on my bike?
GARBARUK POWERCRANK is compatible with most bicycle frames, however, there are models in which the space between the frame and the left crank arm is too small.
Make sure that the space between the surface of the left crank and the frame is at least 8mm.
You can verify this by checking whether an 8mm allen wrench will fit in the space between the rear fork of the frame and the left crank arm (halfway). Also note whether the lower (aero) brakes will collide with its components or cable.
Technical Specifications
✽ Specifications of the Power Meter
Measurement precision - ± 2%
Power measurement range - 20-2000 W
Cadence range - 20-200 rpm
Weight, grams - 10 (INPEAK device)
Case tightness - IP67
Manual zero-offset calibration - YES
Temperature compensation - YES
Gyroscope + Accelerometer - YES
Torque Effectiveness - YES
Pedal Smoothness - YES
Balance L/R - YES (TWiN2)
Operating temperature - from -5°C to +50°C
Storage temperature - from -20°C to +50°C
✽ Battery specifications
Battery type - Lithium CR2032 3V
Battery capacity - 200 mAh
Battery autonomy in use - max. 200 hours
Battery autonomy in sleep - max. 6 months
Battery autonomy in ShipModes - max. 24 months
Low battery notification - YES
✽ Software Specifications
Software update from INPEAK MANAGER App - YES
Modification of “Scale Factor” - YES
Zwift Compatible Mode - YES
ANT+ Compatibility - YES
Bluetooth Low Energy Compatibility - YES
Auto sleep - YES
Auto wake-up - YES
✽ Package contents
Garbaruk XC Crankset with integrated power meter
Brief instruction manual
Sticker set
Spare O-Ring
Device data card
1x CR2032 battery
Download
FAQ
Here are some common questions about Inpeak Power meter.
For detailed information on installation, pairing, calibration, or troubleshooting, please refer to the official Inpeak FAQ page →
Crankarm Length - 170mm, 175mm, 165mm
Crankarm Color - Black, Blue, Gold, Green, Orange, Red, Silver, Violet
Lockring Color - Black, Blue, Gold, Green, Orange, Red, Silver, Violet
Made from - 7075-T651 Aluminum Alloy
Made with - CNC milling
Weight, grams - 391g (170mm length, fully equipped, without chainring), 399g (175mm, fully equipped, without chainring)
Chainline - 52mm
Q-Factor - 170mm
Spindle Length - 136mm
Spindle/Axle diameter - 29mm (DUB), 30mm

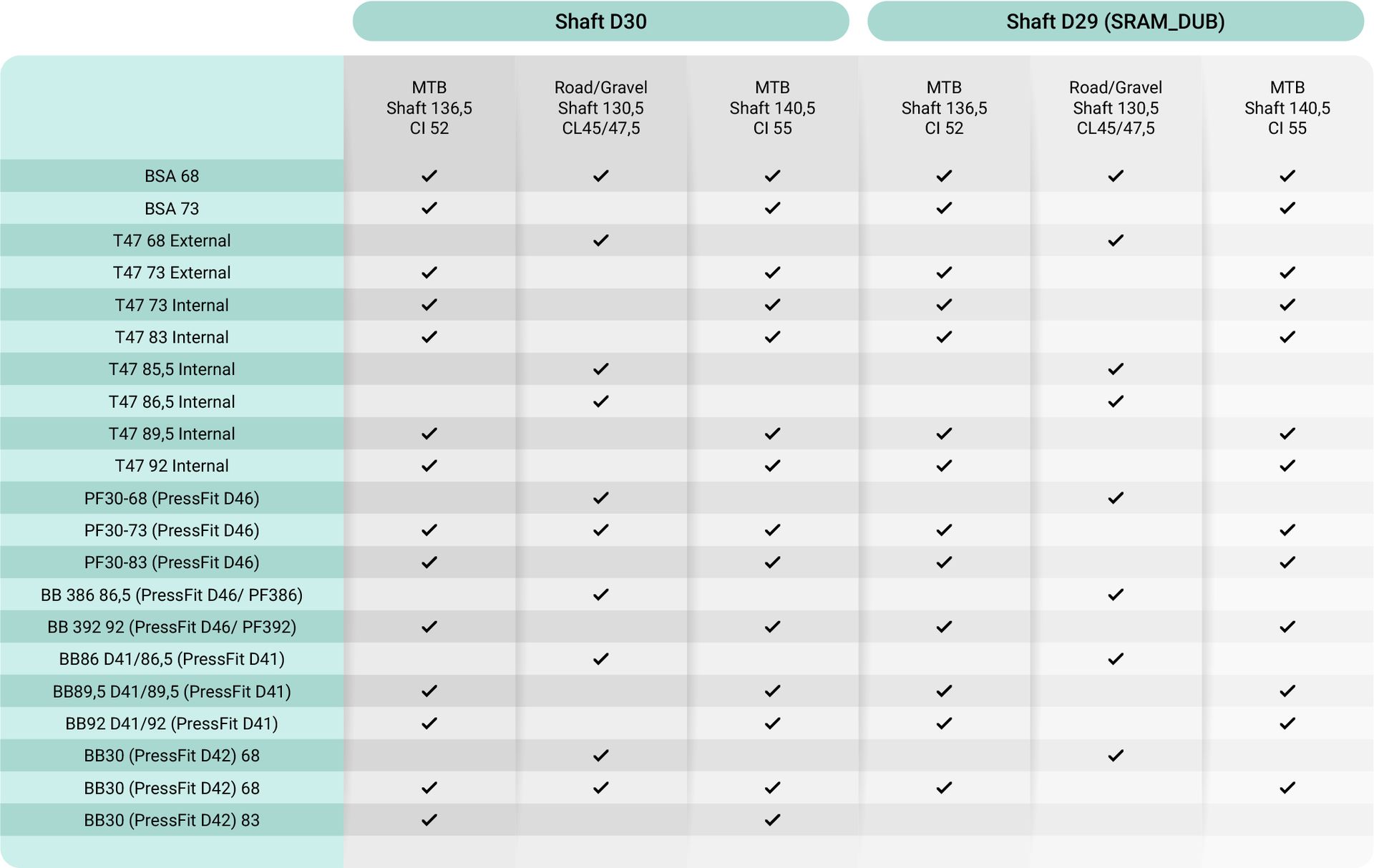

Bottom bracket compatibility table
FAQ
Here are some common questions about our XC Crankset.
To see if the crankset fits your frame and bottom bracket, check this compatibility guide (PDF) with all required measurements and spacing info.
Our crankset is compatible with most common MTB and gravel standards using DUB or D30 spindles. Check our bottom bracket compatibility table for more details.
Looking for an installation manual?
Check our installation guide for detailed instructions.
High performance
Garbaruk products offer exceptional performance, precision, and reliability.
Lightweight
Garbaruk products are some of the lightest in the world
Customizable
Lots of customization options create endless combinations
Made in Poland
All our manufacturing at our HQ near Kraków, Poland
